Project creation

Creating a new project​

New projects are created with Casambi Pro for Windows, at the Backstage view. A project cannot be created with Pro for iOS.

When the New… tab in the Backstage is clicked, a dialog is displayed for entering a name for the project and setting the time zone. The project name can be changed later in the project details view.

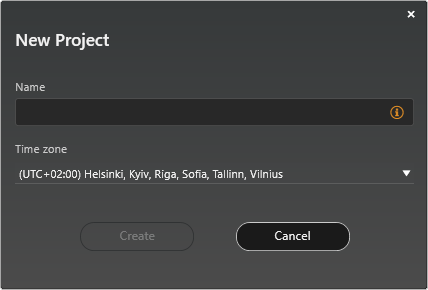

Creating a new Project Dialog

note

Projects can be created only with the Windows version of Casambi Pro.

After a project is created, the main workspace is displayed. A new project does not have any contents, so the user interface has some help texts to guide user to get started.

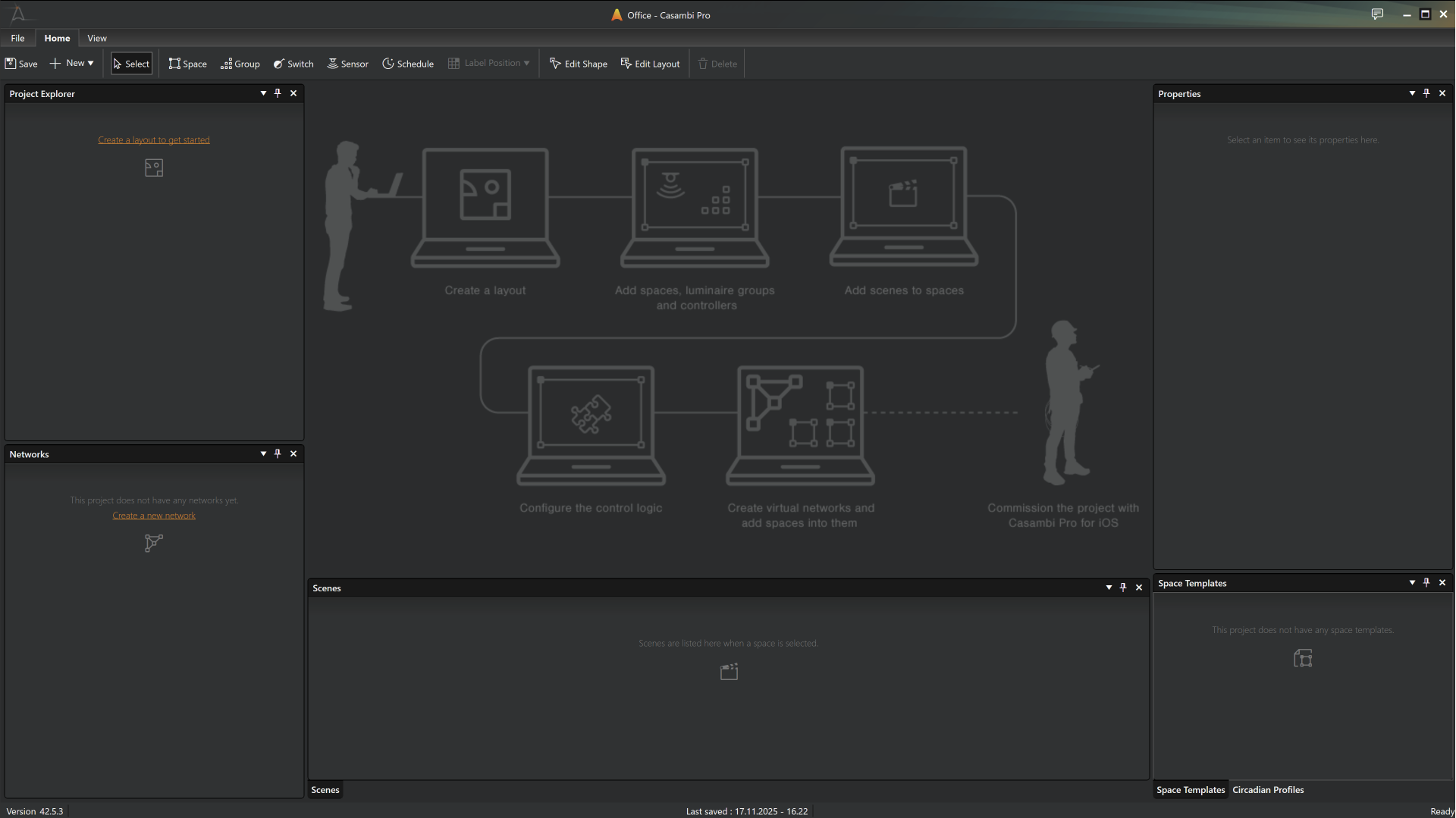

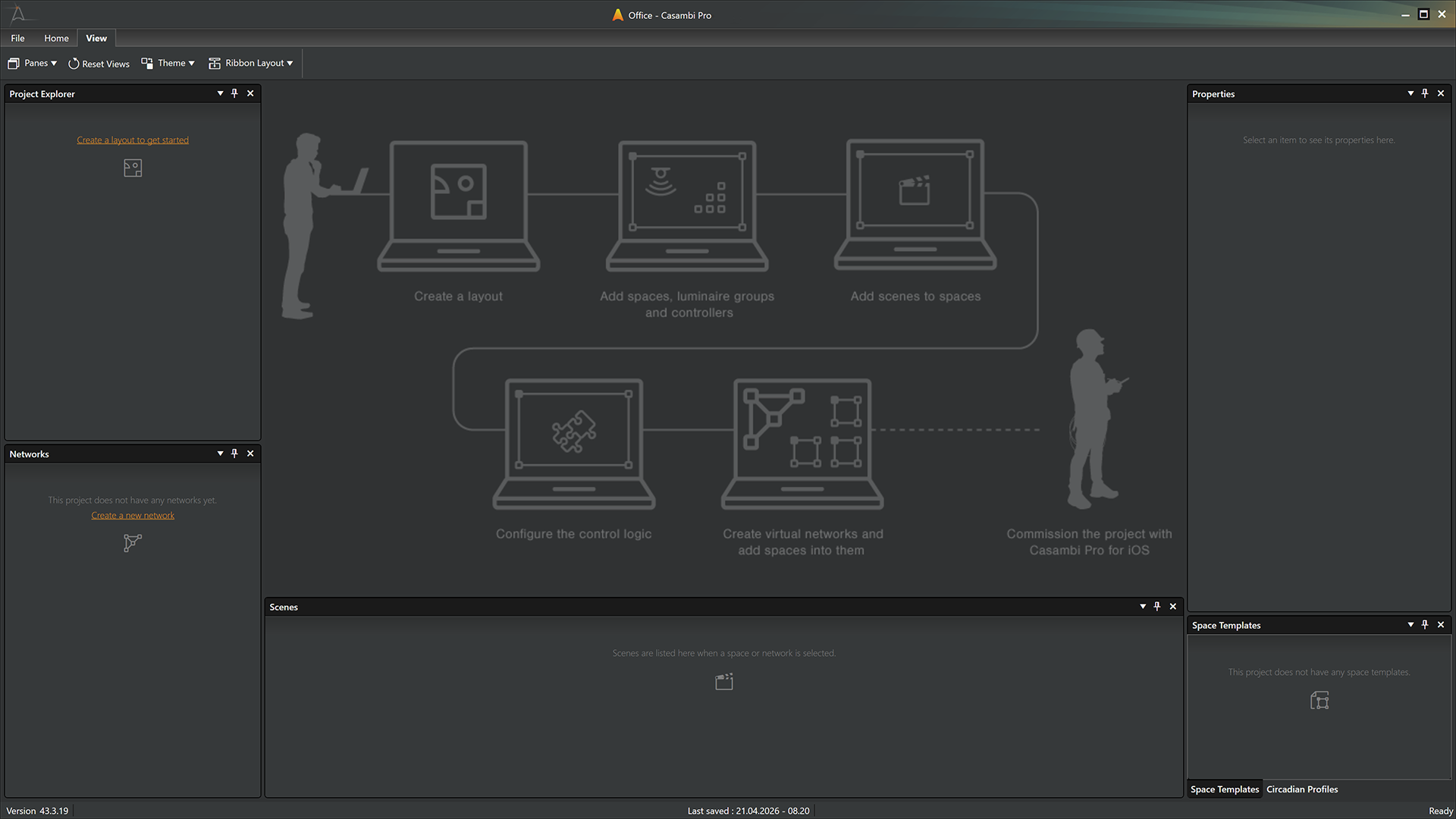

Main Workspace Windows

Project Information​

When a project is open, its detailed information can be accessed from the Backstage view by clicking the Project tab. The project information view has three sub-tabs: Details, Location and Members.

note

The project information is not yet available in Pro for iOS.

Project name is mandatory, and it can be changed in the Project Information view.

The project information is included in exported project documentation.

Details​

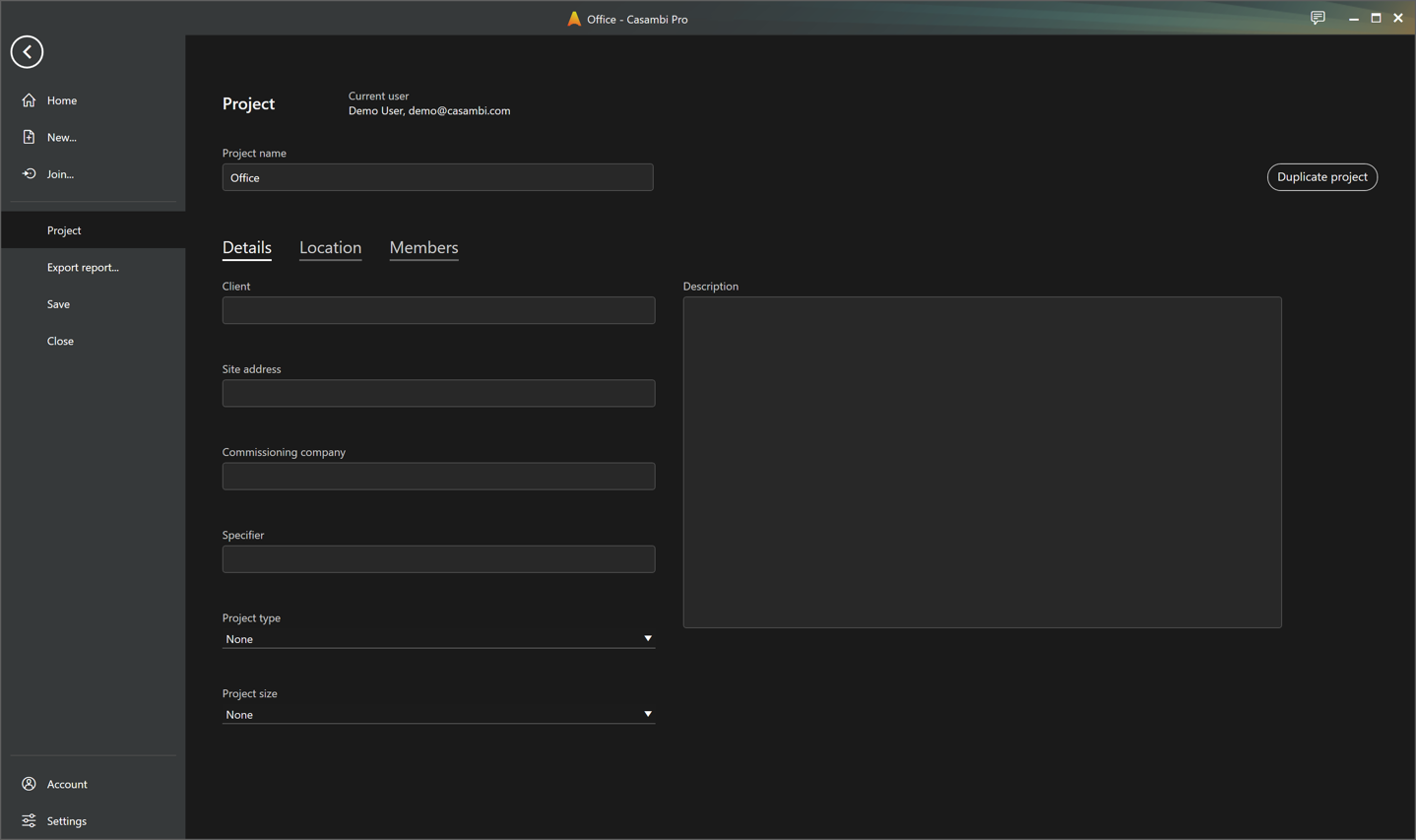

Project Details Windows

The details tab provides a collection of general metadata items.

  • Client
  • Site address
  • Commissioning company
  • Specifier
  • Project type
  • Project size
  • Description (free text)

This view displays also information about the current user and provides a button for creating a duplicate of the currently open project.

Location​

Project location and time zone can be set in the Location tab.

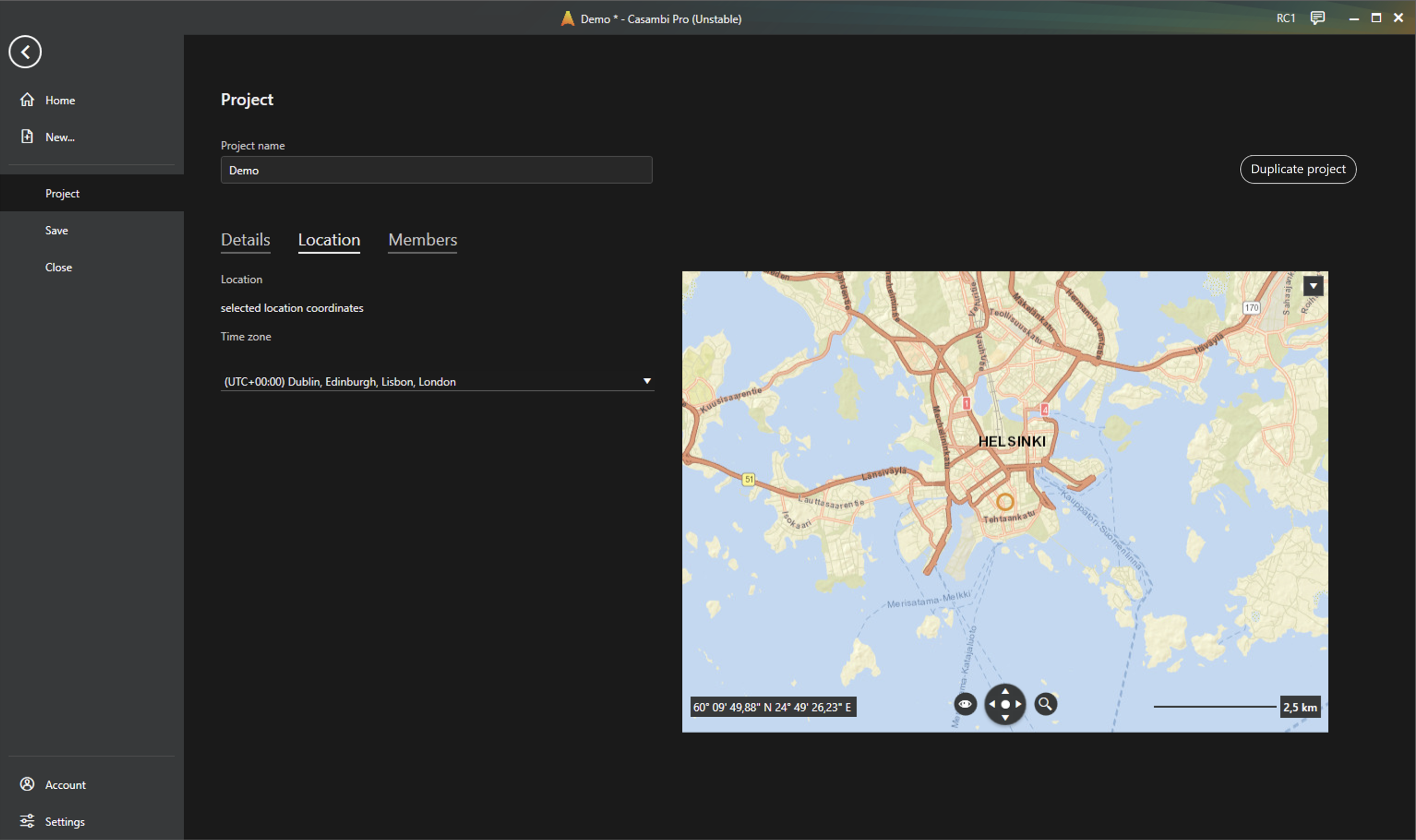

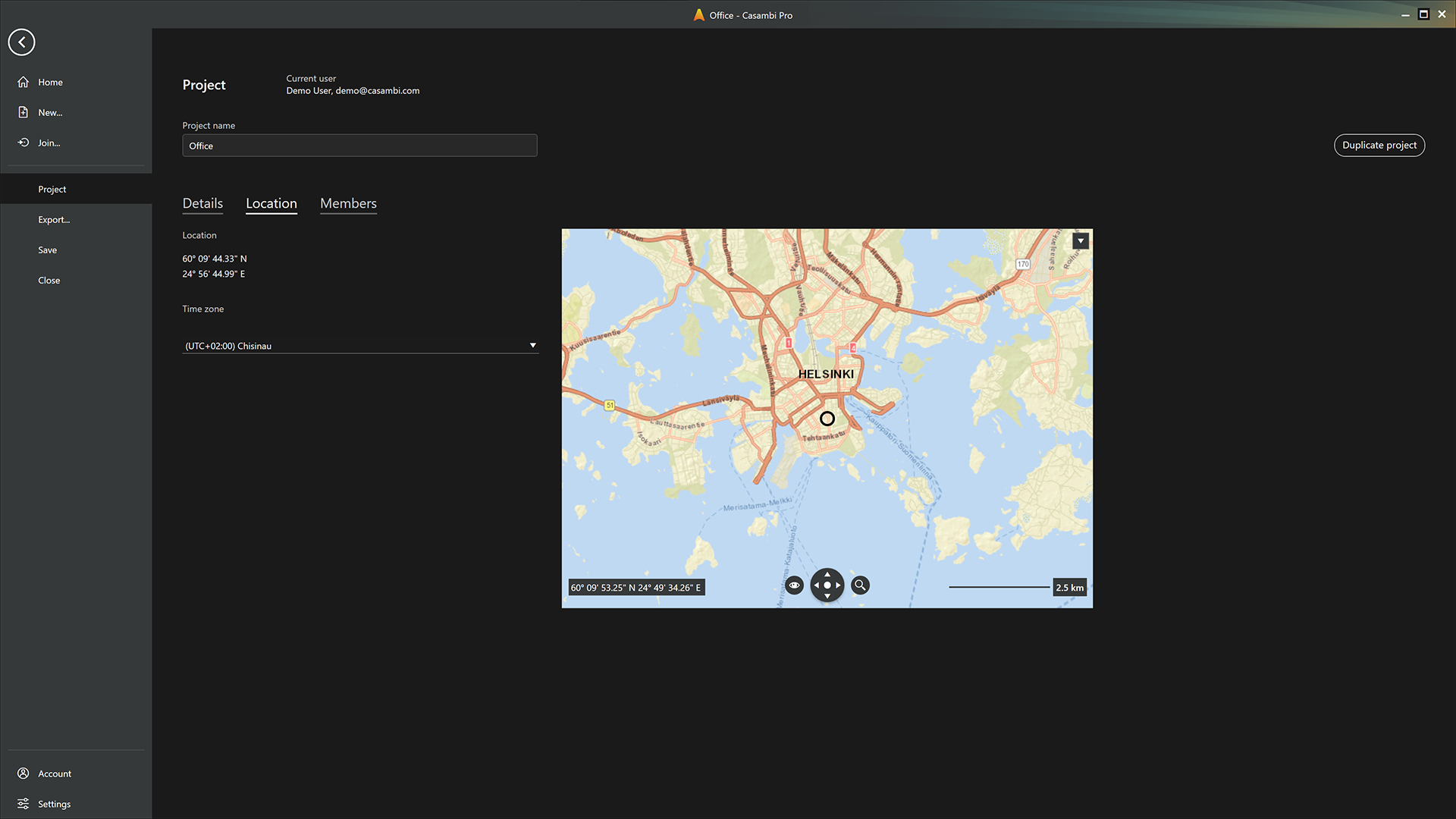

Location Tab

  • Location is set by finding the correct place in the map and clicking at the right coordinate.
  • Time zone can be selected from the drop-down list.
